高頻薄膜精密晶片電感 (AL 系列)



  Scope :
  0201 and 0402 and 0603 series inductor is a photo lithographically etched single layer ceramic chip.
  Design provides high SRF, excellent Q, and superior temperature stability. This highly stable inductor family is specifically
     designed for critical tolerance needs.

Features :


Photolithographic single layer ceramic chip
High SRF, excellent Q, superior temperature stability
Tight tolerance of ± 1% or ± 0.1nH
Self resonant frequency controlled within 10%
Highly stable design for critical needs

Applications :
Cellular Telephone, Pagers and GPS Products
VCO, TCXO Circuit and RF Transceiver Module
Wireless LAN, Bluetooth Module, Communication Appliances

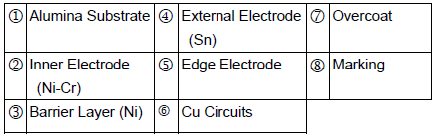

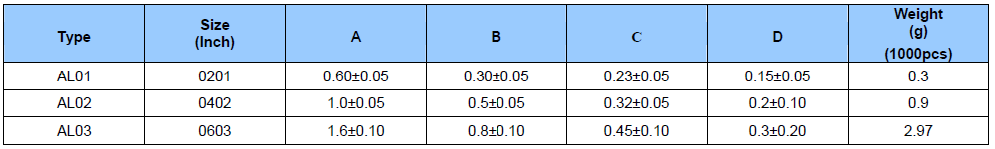

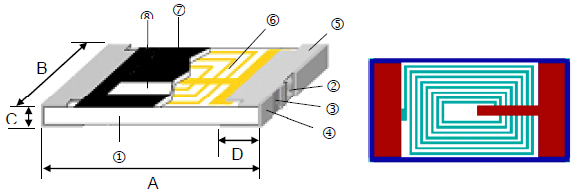

Construction & Dimension :



           Unit: mm

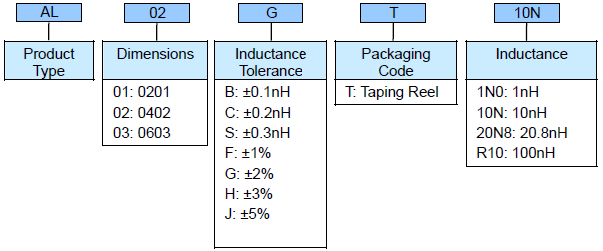

Part Numbering :

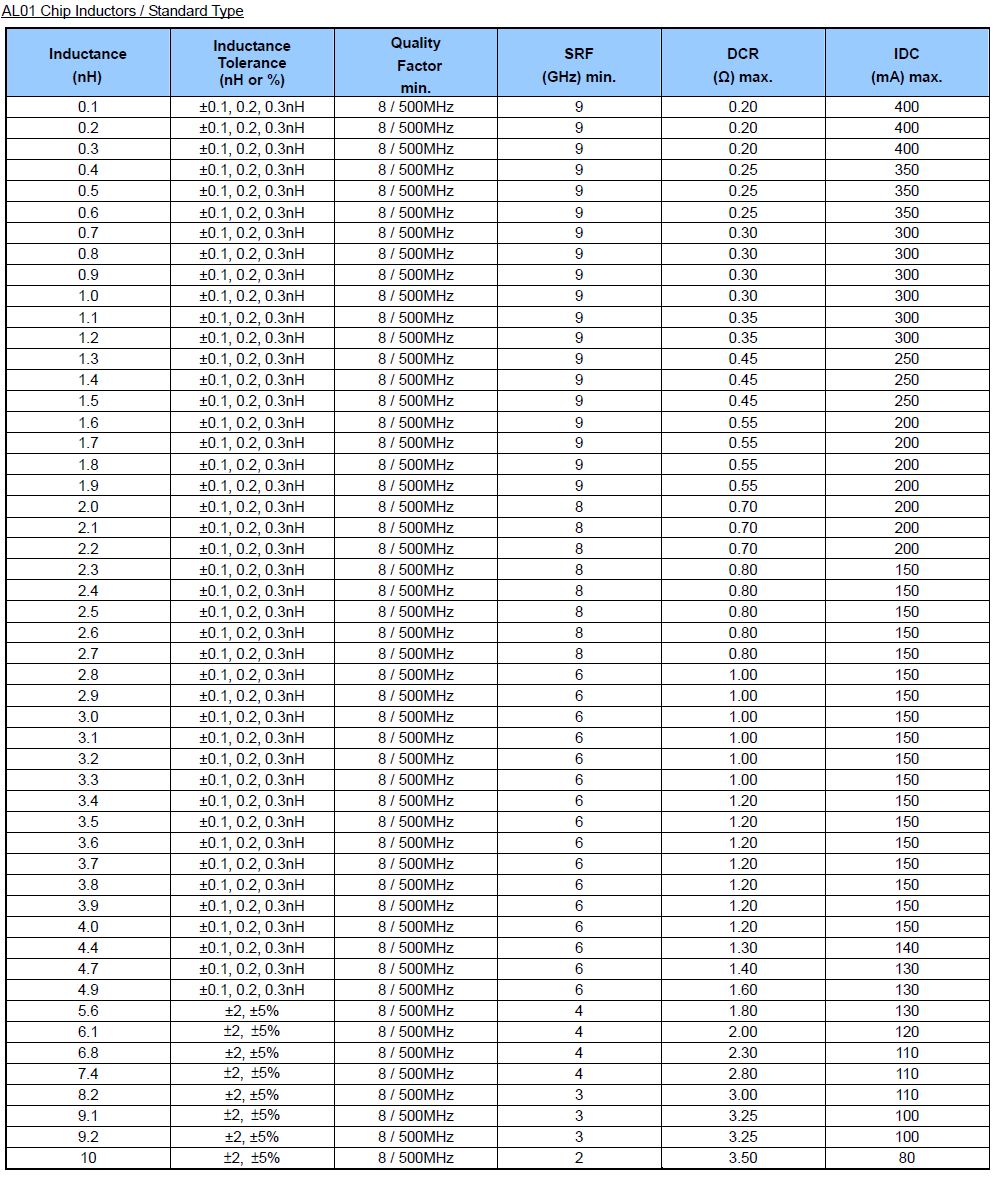

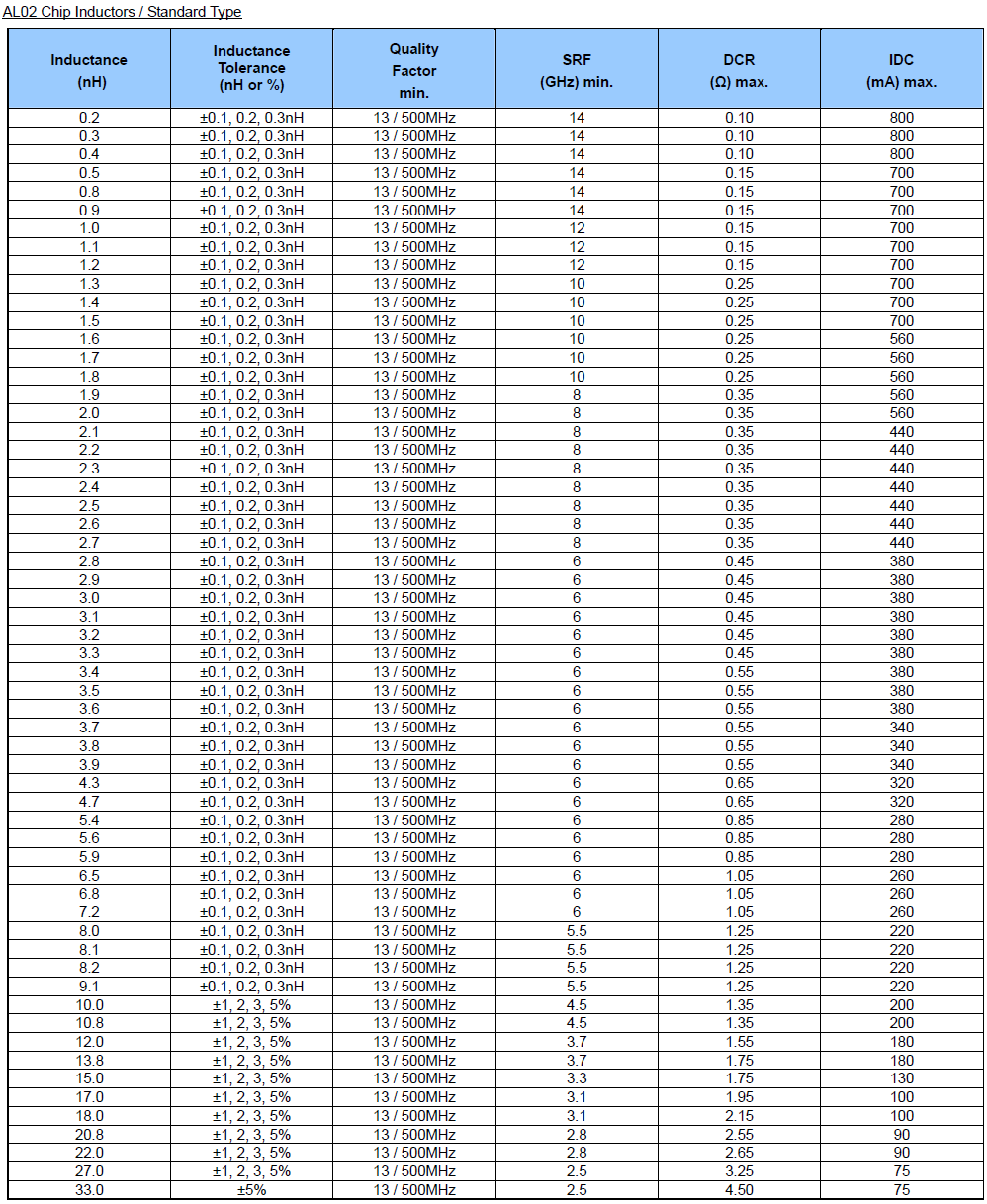

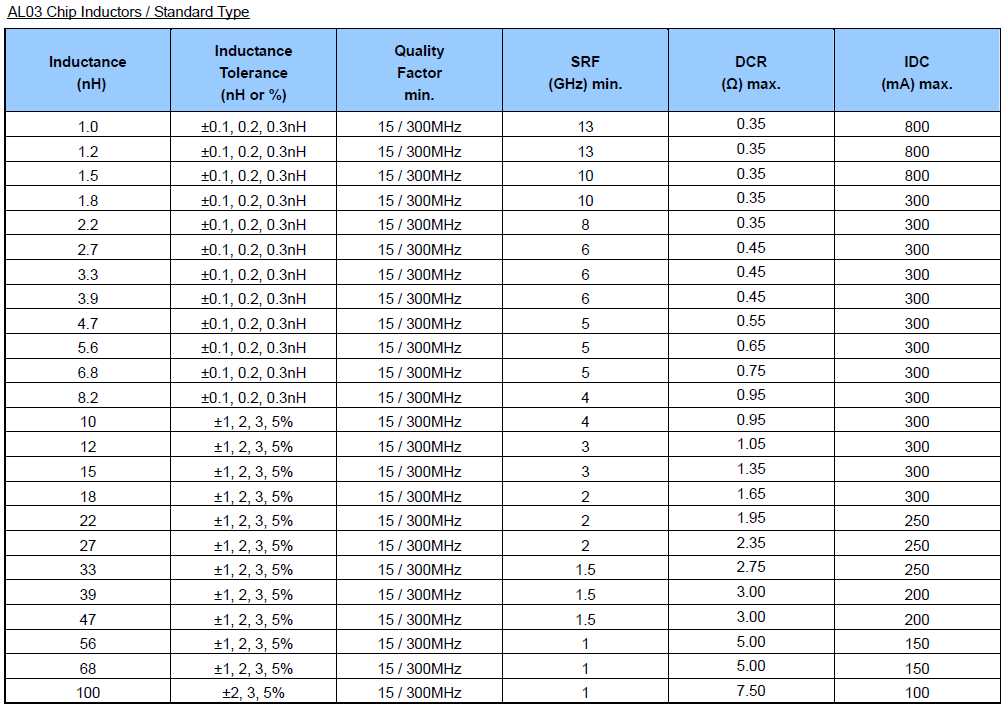

          Standard Electrical Specifications:

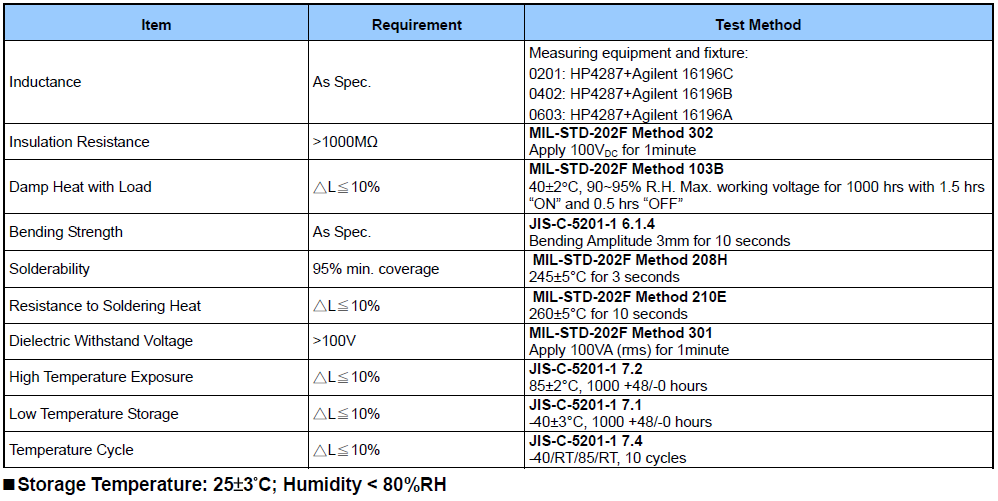

           Environmental Characteristics:

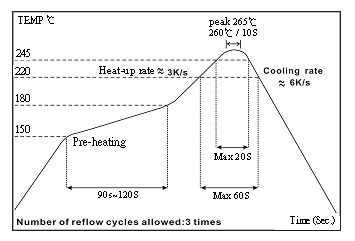

Reflow





　

　
