MELF Type Fixed Carbon / Metal Film Resistors
MELF 碳素 / 金屬皮膜固定電阻器 (無腳電阻)

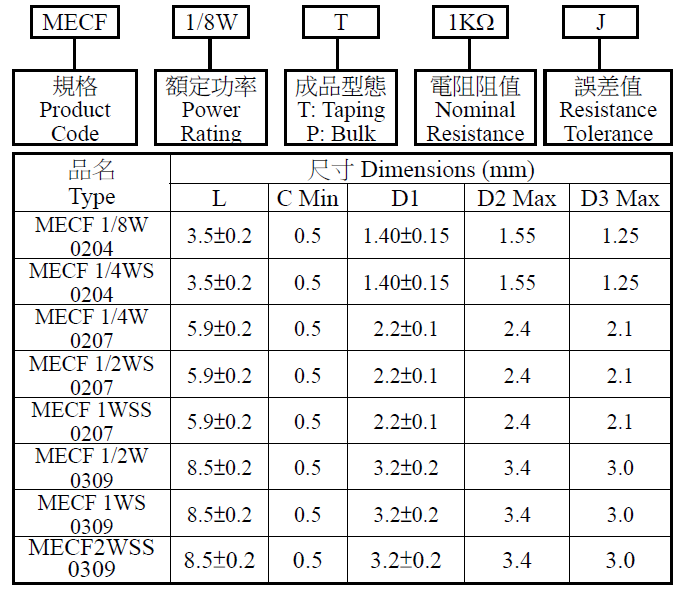

        MELF Type Fixed Carbon Film Resistors
        MELF 碳素皮膜固定電阻器 (無腳電阻)
特性 FEATURES:
 SMD型式之碳素皮膜電阻器。
SMD style carbon resistor.
以圓柱形方便設計安裝。
Free direction for mounting due to cylindrical design.
具高可焊性特殊電極端子。
High solder ability due to specially plated electrodes.
電極強度高於晶片電阻 (器)。
Electrodes strength is higher than flat chip resistors.
比厚膜晶片電阻(器)更低的雜音 (current noise)。
Lower current noise than thick film flat chip resistors.
有較佳的散熱性。
Suitable for reflow, flow and iron soldering.

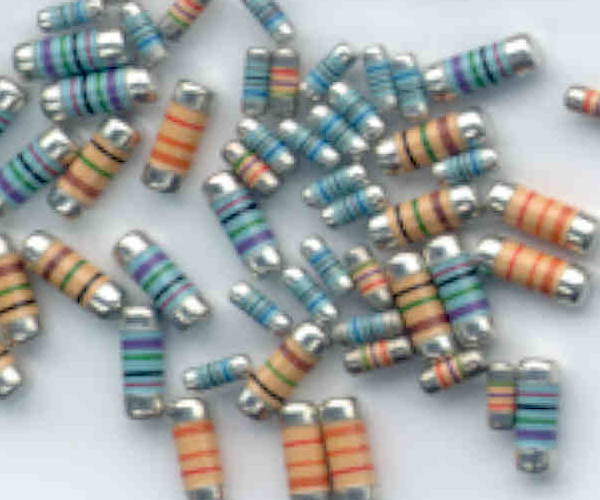

           底漆：米黃色        標示：色環標示(三條色環標示)
           Coating color：Ivory   Marking：Color code(3 color band)

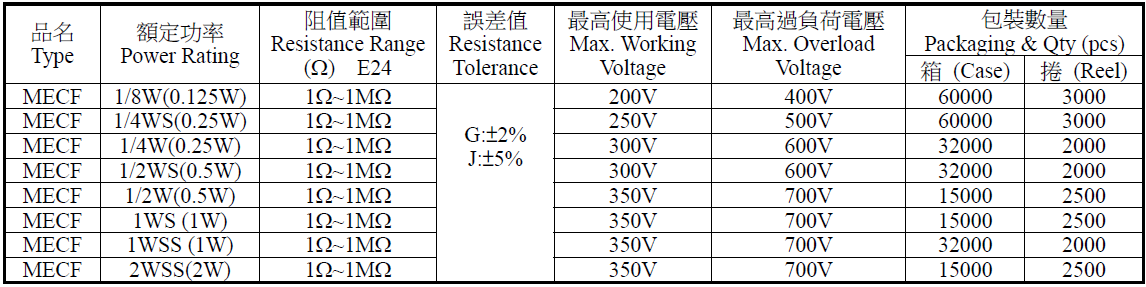

            規格 Ratings :

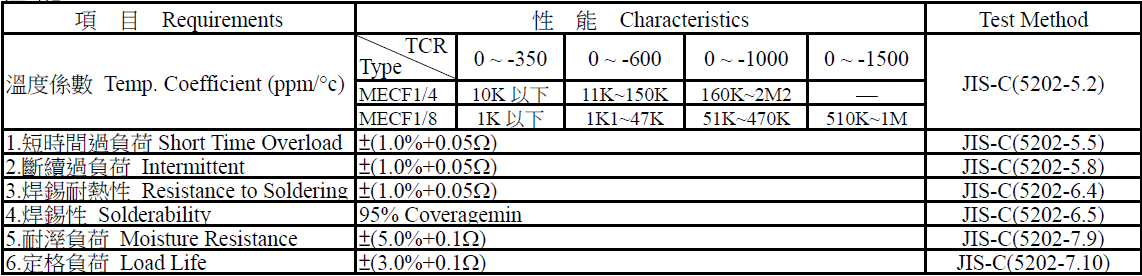

           性 能 Characteristics :

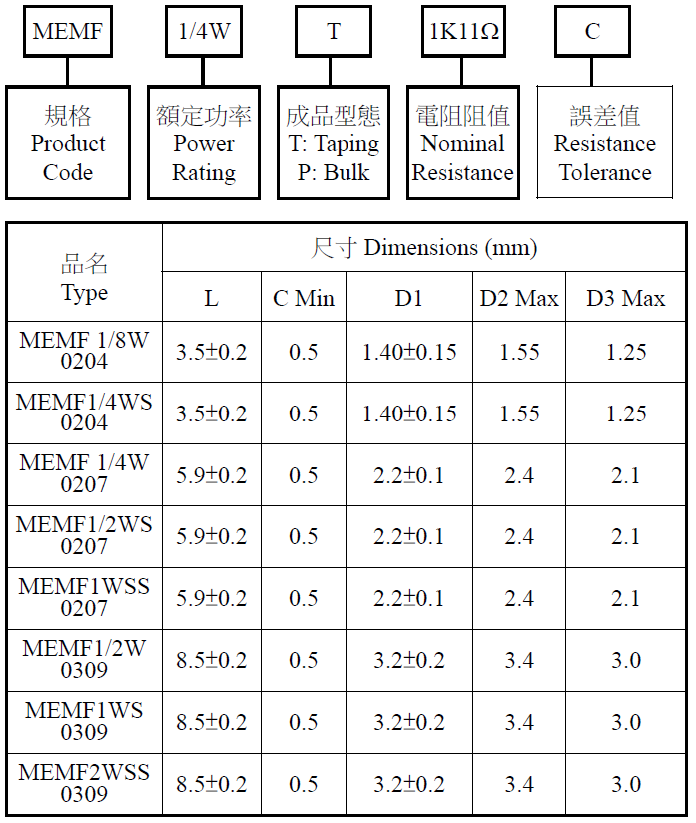

        MELF Type Fixed Metal Film Resistors
        MELF 金屬皮膜固定電阻器 (無腳電阻)
特性 FEATURES:
 SMD型式之金屬皮膜電阻器。
SMD style metal resistor.
以圓柱形方便設計安裝。
Free direction for mounting due to cylindrical design.
具高精密度(容許誤差可達±0.25%，T.C.R.可至±25ppm/℃)
Hi accuracy guaranteed (tolerance ±0.25% & T.C.R.±25ppm/℃)
電極強度高於晶片電阻 (器)。
Electrodes strength is higher than flat chip resistors.
比厚膜晶片電阻(器)更低的雜音 (current noise)。
Lower current noise than thick film flat chip resistors.
有較佳的散熱性。
Suitable for reflow, flow and iron soldering.



           底漆：藍色         標示：色環標示(四條色環標示)
           Coating color：Blue  Marking：Color code(4 color band)

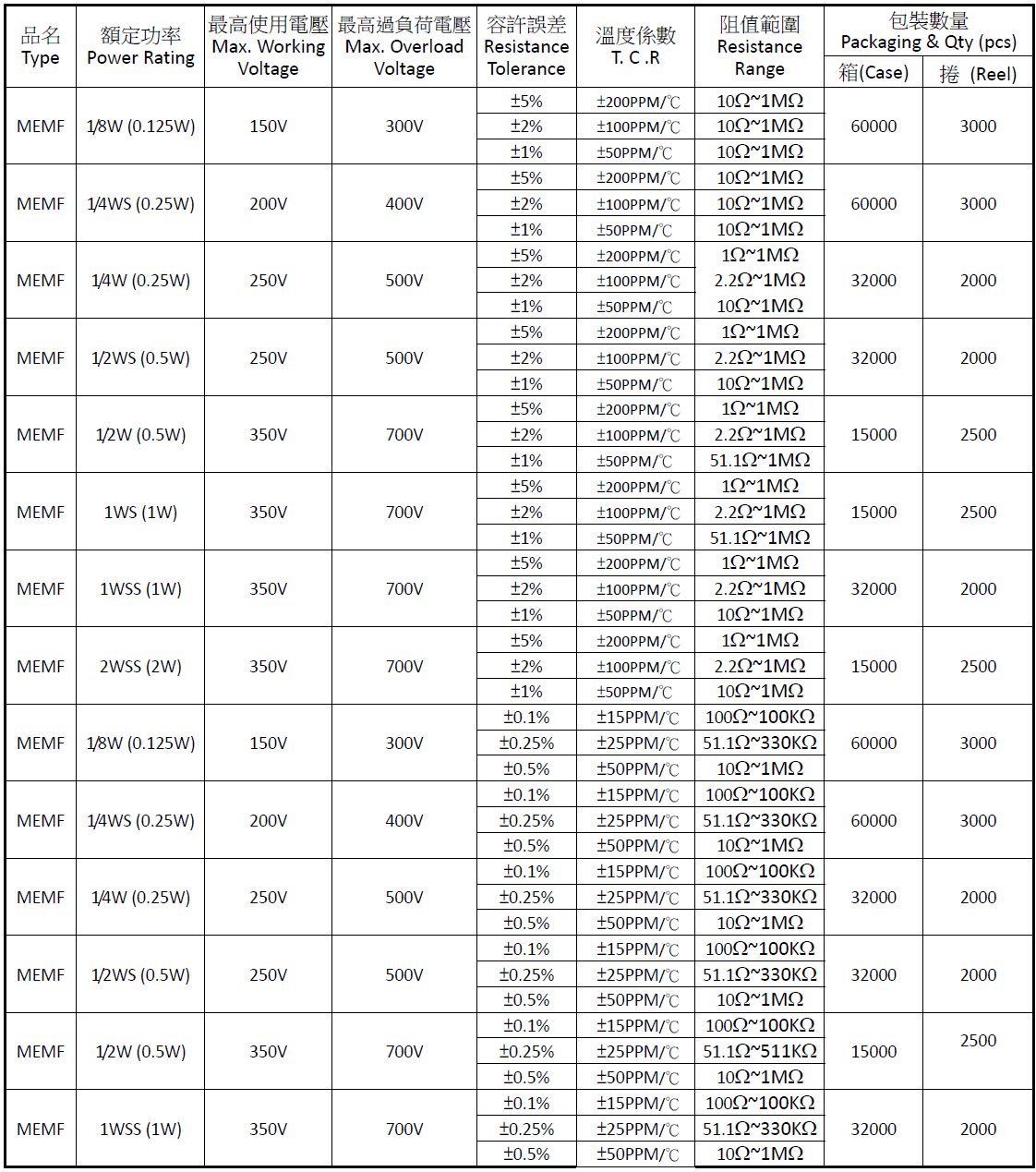

           規格 Ratings :


           額定電壓是以√〔功率(W)*阻值(W)〕計算所得的值及以規格表中列最高使用電壓兩者相比較小者。

        Rated-Voltage= √〔P(W)*R(W)〕or Max. working voltage, whichever lower.

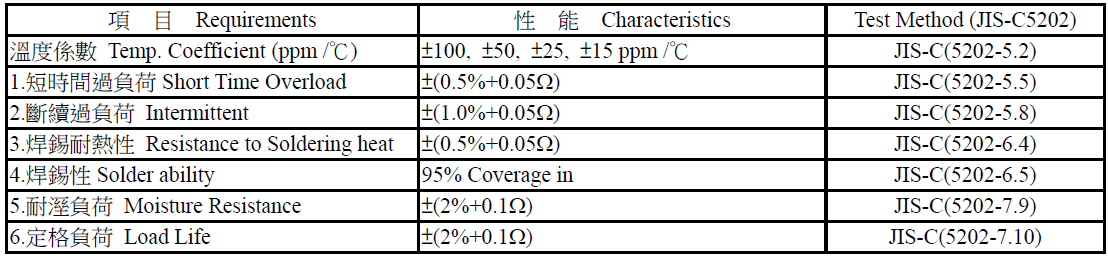

           性能 Characteristics:





　

　
