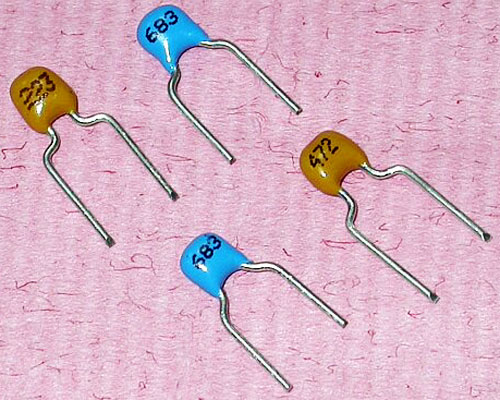

Multilayer Ceramic Capacitors (Radial-Leaded)
積層セラミックコンデンサ (直立型)

不燃エポキシ樹脂塗装
   Flame retardant epoxy
6.3V、10V、16V、25V、50V ~ 3KVDC 定格電圧
   6.3V、10V、16V、25V、50V ~ 3KVDC
NPO、X5R、X7R、Y5V 温度係数
   NPO, X5R, X7R and Y5V temperature coefficients
アキシャル端子線: 錫メッキ銅線或いは銅覆鋼線(CP線)対応
   Axial Type Lead Material: Tinned copper wire or Tinned copper clad
   steel wire (CP wire)


NPO X5R
Rated Voltage
定格電圧 		6.3VDC ~ 3000VDC
Capacitance Range
静電容量範囲 		1pF to 100μF
Capacitance Tolerance
静電容量許容差

Note 備考:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF 		B = ±0.1pF
C = ±0.25pF
D = ±0.5pF
F = ±1%
G = ±2%
J = ±5% 		J= ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
Operating Temperature
操作温度
 -55℃ ~ +125℃ - 55℃ ~ +85℃
Capacitance Change
静電容量変化値 		0 ± 30ppm/℃ ±15%
Capacitance Test:
静電容量試験
@25℃ or referred to +25℃
 1.0Vrms±0.2, 1kHz±10%
1.0Vrms±25, 1MHz±10% for
静電容量 ≤ 1000pF 		1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor
誘電正接 		C＜30pF: Q ≥ 400 + 20C
C ≥ 30pF: Q ≥ 1000
0.1% Max. 		≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
Insulation Resistance
絶縁抵抗 		10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
耐電圧
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA


X7R Y5V
Rated Voltage
定格電圧 		6.3VDC ~ 3000VDC
Capacitance Range
静電容量範囲 		1pF to 100μF
Capacitance Tolerance
静電容量許容差

Note 備考:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF 		J = ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20% 		M = ±20%
Z = +80% ~ -20%
Operating Temperature
操作温度 		-55℃ ~ +125℃ - 25℃ ~ +85℃
Capacitance Change
静電容量変化値 		±15% +30% ~ -80%
Capacitance Test:
静電容量試験
@25℃ or referred to +25℃ 		1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor
誘電正接 		≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15% 		≥ 50V: 5% ~ 7%
25V: ≤ 5% ~ 9%
16V: ≤ 7% ~ 12.5%
10V: ≤ 12.5%
6.3V: ≤ 20%
Insulation Resistance
絶縁抵抗 		10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
耐電圧
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA





　

　
