Multi-layer Ceramic Capacitor (MLCC)
チップ積層セラミックコンデンサ




小型体積で軽量化
   Miniature size and light weight
高静電容量、高性能で高信頼性を持つ
   High capacitance, high performance, and high reliability
民生／産業／工業用電子機器、バイパスなどに適用
   Consumer and industrial electronic equipment, bypass timing and
   general purpose
　　 規格:

NPO X5R
Rated Voltage
定格電圧 		6.3VDC ~ 3000VDC
Capacitance Range
静電容量範囲 		1pF to 100μF
Capacitance Tolerance
静電容量許容差

Note 備考:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF 		B = ±0.1pF
C = ±0.25pF
D = ±0.5pF
F = ±1%
G = ±2%
J = ±5% 		J= ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
Operating Temperature
操作温度 		-55℃ ~ +125℃ - 55℃ ~ +85℃
Capacitance Change
静電容量変化値 		0 ± 30ppm/℃ ±15%
静電容量試験:
Capacitance Test:
@25℃ or referred to +25℃ 		1.0Vrms±0.2, 1kHz±10%
1.0Vrms±25, 1MHz±10% for
capacitance ≤ 1000pF 		1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor
誘電正接 		C＜30pF: Q ≥ 400 + 20C
C ≥ 30pF: Q ≥ 1000
0.1% Max. 		≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
Insulation Resistance
絶縁抵抗 		10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
耐電圧
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA


X7R Y5V
Rated Voltage
定格電圧 		6.3VDC ~ 3000VDC
Capacitance Range
静電容量範囲 		1pF to 100μF
Capacitance Tolerance
静電容量許容差

Note 備考:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF 		J = ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20% 		M = ±20%
Z = +80% ~ -20%
Operating Temperature
操作温度 		-55℃ ~ +125℃ - 25℃ ~ +85℃
Capacitance Change
静電容量変化値 		±15% +30% ~ -80%
静電容量試験:
Capacitance Test:
@25℃ or referred to +25℃ 		1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor
誘電正接 		≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15% 		≥ 50V: 5% ~ 7%
25V: ≤ 5% ~ 9%
16V: ≤ 7% ~ 12.5%
10V: ≤ 12.5%
6.3V: ≤ 20%
Insulation Resistance
絶縁抵抗 		10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
耐電圧
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA

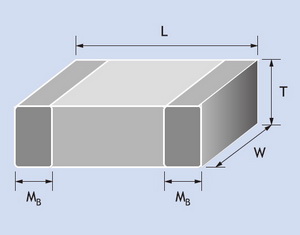

外形寸法 Dimensions
Inch (mm) 		0402 (1005) 0603 (1608) 0805 (2012)
L (mm) 1.00±0.05 1.60+0.15/-0.10 2.00±0.20
W (mm) 0.50±0.05 0.80+0.15/-0.10 1.25±0.20
T (mm) 0.50±0.05 0.80+0.15/-0.10 0.60~1.25±0.20
MB (mm) 0.25+0.05/-0.10 0.40±0.15 0.50±0.20

外形寸法 Dimensions
Inch (mm) 		1206 (3216) 1210 (3225) 1808 (4520) 1812 (4532)
L (mm) 3.20±0.20 3.20±0.40 4.50±0.40 4.50±0.40
W (mm) 1.60±0.20 2.50±0.30 2.03±0.25 3.20±0.30
T (mm) 0.80~1.60+0.30/-0.10 0.95~2.5±0.30 1.25~2.0±0.20 1.25~2.50±0.30
MB (mm) 0.60±0.20 0.75±0.25 0.75±0.25 0.75±0.25





　

　
