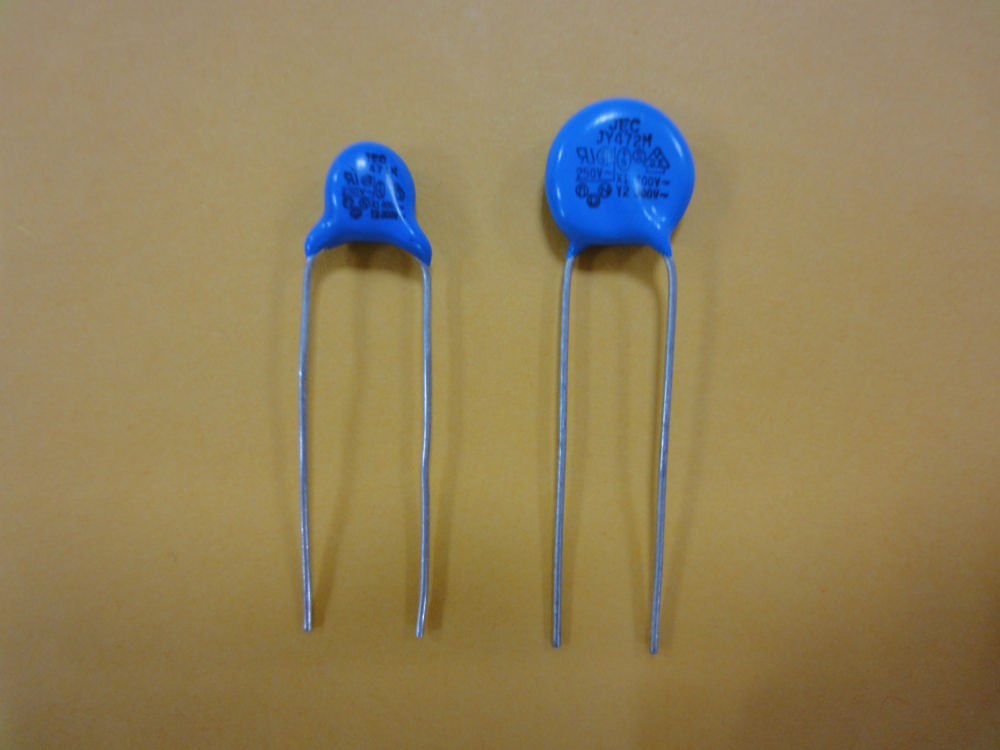

Safety Standard Recognized Ceramic Capacitors (Y1、Y2)
安全規格認定セラミックコンデンサ (Y1, Y2)

不燃エポキシ樹脂塗装 (UL94 V-0)
   Coated with flame-retardant epoxy resin (UL94 V-0)
自動実装に適用
   Suitable for automatic insertion
安全規格認証を持つ
   Safety standard recognized for AC applications
　　   規格

Y1 Y2
Rated Voltage
定格電圧 		250VAC
Capacitance Range
静電容量範囲 		100pF to 4700pF 100pF to 10000pF
Operating Temperature
操作温度
 -25℃ to 125℃
Dielectric Withstanding Voltage
耐電圧 		4000VAC for 1 minute 2600VAC for 1 minute
Capacitance
静電容量 		Within the specified tolerance when measured at 1KHz±20%(Y5P, Y5U, Y5V, X7R), 1MHz ±20%(COG), 1Vrms and 25℃
Dissipation Factor Dissipation Factor (tanδ)
誘電正接 		tanδ ≤ 2.5% for char. Y5P, Y5U, Y5V, X7R when measured at 1KHz±20% 1Vrms and 25℃ Quality Factor ≥ 300 for char. COG when measured at 1MHz±20% 1Vrms and 25℃
Insulation Resistance (IR)
絶縁抵抗 		10,000 MΩ min. at 500VDC

Capacitance (pF)
静電容量範囲 (pF) 		Y1 Y2
100
150
200
330
470
560
680
1000
1500
2200
3300
4700
10000





　

　
