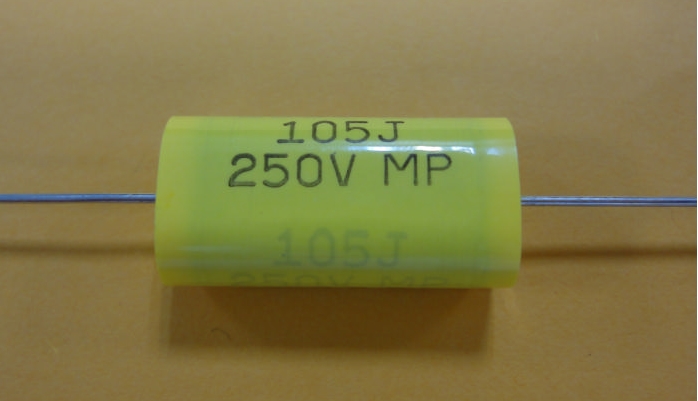

Metallized Polyester Film Capacitors (MPA)
金屬化聚乙酯薄膜電容器  (MPA)

自癒性
  Self-healing characteristic
體積小、重量輕
  Miniature size and light weight
無極性
  Non-inductive construction
可用於自動控制系統、通訊設備與一般用途
  Auto control system, telecommunication
  and general purpose

Rated Voltage
額定電壓 		100 ~ 630VDC
Capacitance Range
電容量範圍 		0.01 ~ 10μF
Capacitance Tolerance
容量誤差 		J(±5%), K(±10%)
Dissipation Factor(DF)
損耗因數 		≤ 1% Max. at 1KHz and 20℃
Insulation Resistance(IR)
絕緣阻抗 		C ≤ 0.33μF, IR ≥ 30,000MΩ
C > 0.33μF, IR ≥ 10,000MΩ / μF
Dielectric Strength
耐電壓 		150% of rated voltage for 5sec
Operating Temperature
操作溫度 		-40 ~ +85℃




　
