Thick Film Chip Resistor (CR Series)
厚膜晶片電阻器




Features :

Small and Light Weight
Excellent Heat Resistance and Moisture Resistance
Taping & Bulk Cassette are available for Automatic Pick-and-Place Machines.
Lead Free Products are available.

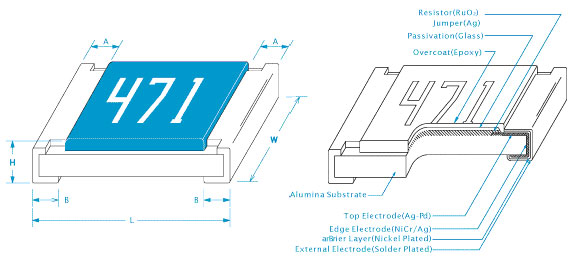

Construction & Dimension :

Unit: mm
Type Inch Metric L W H A B
CR-01 0201 0603 0.60±0.03 0.30±0.03 0.23±0.03 0.15±0.05 0.15±0.05
CR-02 0402 1005 1.00±0.50 0.50±0.05 0.35±0.05 0.20±0.10 0.25±0.10
CR-03 0603 1608 1.60±0.10 0.80±0.10 0.45±0.10 0.30±0.20 0.30±0.20
CR-05 0805 2012 2.00±0.10 1.25±0.10 0.50±0.10 0.35±0.20 0.40±0.20
CR-06 1206 3216 3.10±0.10 1.55±0.10 0.55±0.10 0.50±0.25 0.50±0.25
CR-10 1210 3225 3.20±0.20 2.60±0.15 0.55±0.10 0.50±0.25 0.50±0.25
CR-0A 2010 5025 5.00±0.20 2.50±0.15 0.55±0.10 0.60±0.25 0.50±0.25
CR-12 2512 6332 6.35±0.20 3.20±0.15 0.55±0.10 0.60±0.25 0.50±0.25

　 Thick Film Chip Resistor Characteristics




Characteristics :

Type CR-01 CR-02 CR-03 CR-05 CR-06 CR-10 CR-0A CR-12
Power Rating 1/20 W 1/16 W 1/10 W 1/8 W 1/4 W 1/3 W 1/2 W 1 W

Operating

Temperature Range

 -55℃ ∼ +125℃

Max. Working

Voltage

 15V 50V 50V 150V 200V 200V 200V 200V

Max. Overload

Voltage

 50V 100V 100V 300V 400V 400V 400V 400V

Dielectric

Withstanding Voltage

 50V 100V 100V 300V 500V 500V 500V 500V
Jumper < 50mΩ
Resistance& TCR (ppm/℃)
Tolerance 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5%

1Ω~9.76Ω

10Ω~1MΩ

1.1MΩ~10MΩ

 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200
- ±200 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100
- - - ±200 - ±200 - ±200 - ±200 - ±200 - ±200 - ±200

Jumper Rated

Current

 0.5A 1A 1A 2A 2A 2A 2A 2A
Remarks: Resistance range and tolerance for standard value, any special values on request.

Power Derating Curve :

The power that the resistors can dissipate depends on the operating ambient temperature as the chart shown (left).

　


　 Low Ohmic Thick Film Chip Resistor




Features :

Low Inductance
Battery Charge Current Sensing
Highly Reliable Multilayer Electrode Construction
Higher Component and Equipment Reliability
Excellent Performance at High Frequency
Reduced Size of Final Equipment

Applications :

Televisions
Audio Recorders
Telecommunication Equipment
Notebook Computers
Battery Chargers
Desktop Computers

Marking Methods :

±1%

±5%

 CR-03 ▲Letter R is decimal point.
▲22 Means 220mΩ.

±1%

±5%

CR-05

CR-06

CR-0A

CR-12

 ▲Letter R is decimal point.
▲050 Means 50mΩ.

Characteristics :

Type CR-03 CR-05 CR-06 CR-10 CR-0A CR-12
Power Rating 1/10 W 1/8 W 1/4 W 1/3 W 1/2 W 1 W

Operating

Temperature Range

 -55℃ ∼ +125℃

Max. Working

Voltage

 50V 150V 200V 200V 200V 200V

Max. Overload

Voltage

 100V 300V 400V 400V 400V 400V

Dielectric

Withstanding Voltage

 100V 300V 500V 500V 500V 500V
R Value & Tolerance % & TCR (ppm/℃)
Tolerance 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5%

0.02Ω~0.1Ω

0.11Ω~0.976Ω

 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500
±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500
Remarks: Resistance range & tolerance are standard values; any other values are available upon request.

　 High Ohmic Thick Film Chip Resistor




Features :

Reduced Size of Final Equipment
Low Assembly Costs
Highly Reliable Multilayer Electrode Construction
High Maximum Permissible Voltage

Applications :

Measuring Equipment
Telecommunication Equipment
Computers
Televisions

Characteristics :

Type CR-03 CR-05 CR-06 CR-10 CR-0A CR-12
Power Rating 1/10 W 1/8 W 1/4 W 1/3 W 1/2 W 1 W

Operating

Temperature Range

 -55℃ ∼ +125℃

Max. Working

Voltage

 50V 150V 200V 200V 200V 200V

Max. Overload

Voltage

 100V 300V 400V 400V 400V 400V

Dielectric

Withstanding Voltage

 100V 300V 500V 500V 500V 500V
R Value & Tolerance % & TCR (ppm/℃)
Tolerance 5% 5% 5% 5% 5% 5%

11MΩ~20MΩ

22MΩ~39MΩ

±200 ±200 ±200 ±200 ±200 ±200
±400 ±400 ±400 ±400 - -
Remarks: Resistance range & tolerance are standard values; any other values are available upon request.

　 High Precision Chip Resistors




Features :

Reduced Size of Final Equipment
Low Assembly Costs
Higher Component and Equipment Reliability
Complete High Precision SMD Family

Applications :

Complete High Precision SMD Family
Power Supplies
EDP
Telecommunication Equipment

Characteristics :

Type CR-02 CR-03 CR-05 CR-06 CR-10
Power Rating 1/16 W 1/10 W 1/8 W 1/4 W 1/3 W

Operating Temperature Range

 -55℃ ∼ +125℃

Max. Working Voltage

 50V 50V 150V 200V 200V

Max. Overload Voltage

 100V 100V 300V 400V 400V

Dielectric Withstanding Voltage

 100V 100V 300V 500V 500V
R Value & Tolerance % & TCR (ppm/℃)
Tolerance ±0.1% ±0.5% ±0.1% ±0.5% ±0.1% ±0.5% ±0.1% ±0.5% ±0.1% ±0.5%

10Ω~1MΩ

 - ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100
Remarks: Resistance range & tolerance are standard values; any other values are available upon request.

Application Example :



　

　
