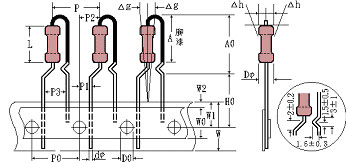

其他造型與帶裝 (RSS,RSU,RFU
Series) |
|
|
|
Model
型名
|
Dimensions 尺寸 (mm)
|
|
L
|
D φ
|
d φ
|
P(Max)
|
H
|
|
RSS1W
|
9±0.5
|
3.0±0.5
|
0.8±0.05
|
14
|
7  |
|
RSS2W、RSU1W、RFU1W
|
12
|
4.0±0.5
|
0.8±0.05
|
17
|
8 |
|
RSS3W、RSU2W、RFU2W
|
16 |
5.5±0.5
|
0.8±0.05
|
21
|
9 |
|
|
|
Model
型名
|
Dimensions 尺寸 (mm)
|
|
L
|
D φ
|
d φ
|
P
|
H
|
b1
|
b2
|
|
RSS1W
|
9±0.5
|
3.0±0.5
|
0.6±0.05
|
12.5±2
|
9±1
|
1.1  |
1.45 |
|
|
12
|
4.0±0.5
|
0.8±0.05
|
15±2
|
9±1
|
1.3 |
1.65 |
|
|
16 |
5.5±0.5
|
0.8±0.05
|
20±2
|
9±1
|
1.3 |
1.65 |
|
|
|
Model
型名
|
Dimensions 尺寸 (mm)
|
1/4W
1/3W
S1/2W
、
1/2W
S1W
|
D φ
|
L
|
d φ
|
A
|
P
|
P0
|
P1
|
P2
|
P3
|
W2
|
|
2.5 (max)
|
7.0 (max)
|
0.6±0.06
|
8 |
12.7±1.0
|
12.7±0.3
|
3.85±0.7
|
6.35±0.4
|
5.08  |
3 (max)
|
|
H0
|
△h
|
D0
|
W
|
W0
|
W1
|
△g
|
D
|
≦ S1/2W |
2.4±0.1 |
| ≧ 1/2W |
3±0.5 |
|
16.5±0.5
|
0±2.0  |
4.0±0.2
|
18.0±1.0
|
5 (min)
|
9.0±0.5
|
0±3.0 |
L
|
≦ S1/2W |
6.0±0.3 |
| ≧ 1/2W |
9.0±0.5 |
| A0 |
≦ S1/2W:12.5(max) |
|
|
|
|
|
|
|
| ≧1/2W:16.5(max) |
|
...............................................................................................................................................................................................................................................
|
