ITEM 項 目
|
SPEC 規 格
|
REMARKS 備 註
|
|
Resistance
抵抗值
|
after test ,see table 1 |
Measuring points on inner edges of taping
測量點在貼帶兩側
|
|
Load life under high temperature
高溫負荷壽命
|
after test ,see table 1 |
Rated Amperage at 70℃ for 1,000 hours
額定電流70℃ 1,000 小時;1/6W:1.5A,≧1/4W：2.5A.
|
|
Load life under high humidity
耐濕負荷壽命
|
after test ,see table 1 |
40℃,95% RH for 1,000 hours;1.5h ON/ 0.5h OFF cycle
40℃,95% RH 1,000 小時;1.5h ON/ 0.5h OFF 周期
|
|
Soldering property
焊錫特性
|
Coverage 95%
95%以上
|
245℃±5℃ for 3 seconds
245℃±5℃ 3 秒
|
|
Dielectric withstanding voltage
耐電壓
|
1/6W：300V
≧1/4W：500V
|
V-Block; duration time 60s |
|
Tensile strength
拉力強度
|
after test ,see table 1 |
Neither breakage of the lead wire nor
loosening of termination |
|
Bending strength
抗折力
|
after test ,see table 1 |
Neither breakage of the lead wire nor
loosening of termination |
|
Temperature cycling
溫度循環
|
after test ,see table 1 |
Test temp. -55℃(30min)/+85℃(30min)
number of 5 cycles
|
|
|
| Various types of forming & taping are
available |
| 提供插裝的造型與帶裝 |
| Coating color：RZU fire
prevention coat (Gray)、RZY |
| Insulation resin (Yellowish)、RZT
iron core. |
|
塗裝顏色： RZU塗裝防火型(灰色)、RZY絕
緣樹脂(淡黃色)
|
| RZT 鐵芯型 |
|
|
Model
型名
|
Power
Rating
額定功率
(W)
|
Resistance
Range
阻值範圍
(Ω)
|
Maximum Amperage
最高使用電流
|
Dielectric
Withstanding
Voltage
耐電壓
|
Dimension 尺寸 (mm)
|
|
W
|
L
|
Dφ
|
P
|
ι
|
dφ
|
|
RZU
|
1/6
|
<20mΩ
|
1.5A
|
300V
|
52±1
|
3.3±0.3
|
1.8±0.3
|
5±0.5
|
28±2
|
0.45±0.05
|
|
1/4
|
<20mΩ
|
2.5A
|
500V
|
52±1
|
6.0±0.5
|
2.4±0.1
|
5±0.5
|
28±2
|
0.60±0.05
|
|
1/2
|
<20mΩ
|
2.5A
|
500V
|
52±1
|
9.0±0.5
|
3.3±0.5
|
5±0.5
|
30±3
|
0.60±0.05
|
|
RZT
|
1/6
|
<5mΩ
|
10A
|
300V
|
52±1
|
3.3±0.3
|
1.8±0.3
|
5±0.5
|
28±2
|
0.45±0.05
|
|
1/4
|
<5mΩ
|
15A
|
500V
|
52±1
|
6.0±0.5
|
2.4±0.1
|
5±0.5
|
28±2
|
0.60±0.05
|
|
RZY
|
1/6
|
<20mΩ
|
3A
|
300V
|
52±1
|
3.3±0.3
|
1.8±0.3
|
5±0.5
|
28±2
|
0.45±0.05
|
|
1/4
|
<20mΩ
|
5A
|
500V
|
52±1
|
6.0±0.5
|
2.4±0.1
|
5±0.5
|
28±2
|
0.60±0.05
|
|
| RZU Type |
 |
| RZF Type |
 |
| RZT Type |
 |
| |
|

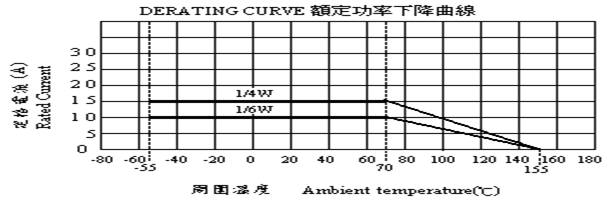

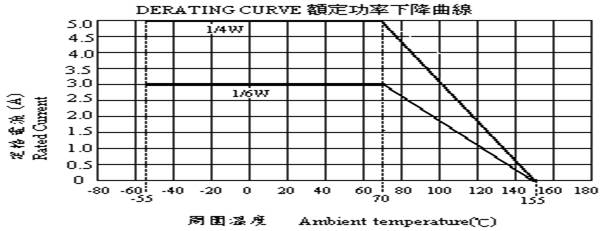

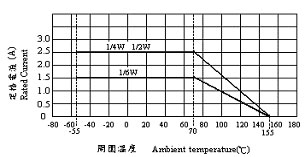

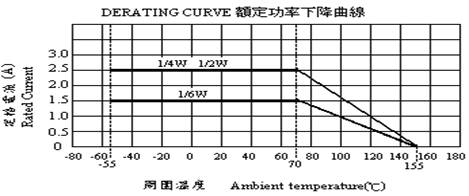

For resistors operated in ambient temperature over
70℃, power rating must be derated in accordance with the curve above.
(在周圍溫度超過70℃使用時，應依據上圖額定功率下降曲線，輕減其額定功率)
|
...............................................................................................................................................................................................................................................
|
Automatic insertion is
applicable.
