FEATURES 特性：
 Resistance value range is 10K~100MΩ.
阻值範圍：10K~100MΩ
Stable and long service life
長期使用壽命與穩定性佳
UL1676 Authentication scope 100K ~ 100M (File
No.E220321)
UL1676 認證範圍：100K ~ 100M (File
No.E220321)
|
|
CHARACTERISTICS 性
能：
|
ITEM 項 目 |
SPEC 規 格 |
REMARKS 備 註 |
|
Load life under high temperature
高溫負荷壽命 |
±5% |
JIS C 5201-1 Rated voltage at 70℃ for 1,000 hours
(4.25.1) 額定電壓70℃ 1,000 小時 |
|
Load life under high humidity
耐濕負荷壽命 |
±5% |
JIS C 5201-1 Rated voltage at 40℃,95% RH for 1,000
hours
(4.24) 額定電壓40℃,95% RH 1,000小時 |
|
Temp. coeff. of resistance
溫度係數 |
±350 PPM/℃ |
JIS C 5201-1 Room temp. + 100℃，30min
室溫 + 100℃，30分鐘 |
|
Short time overload
短時間過負荷 |
±1% |
JIS C 5201-1 6.25 times the rated power for 5 seconds
(4.13) 6.25倍額定功率 5 秒 |
|
Temperature cycling
溫度循環 |
±1% |
JIS C 5201-1 5 cycles for –25℃±3℃(30min)；room
temp.(30min)
(4.19) ~ +85℃±3℃(30min) room temp. (30min) |
|
Resistance to soldering heat 焊錫耐熱 |
±1% |
JIS C 5201-1 260℃±5℃ for 10 seconds(焊錫槽)
(4.18) 350℃±10℃ for 3.5 seconds(手焊錫) |
|
Insulation resistance
絕緣電阻 |
>1,000MΩ |
JIS C 5201-1 500 volt Insulation test 1min
(4.6.1.1) 500 V絕緣測試電壓1分鐘 |
|
Pulse withstanding voltage
脈衝測試
|
±20%
|
|
|
■The following discharge cycle is repeated in the
circuit of the left fig. 2.5 sec. ON 2.5 sec. OFF 50
cycles.
With following DC pulse test voltage
■
Pulse voltage: <100KΩ：5KV
≧100KΩ：10KV | |
 |
|
| Various type of forming & taping are
available |
| 提供插裝的造型與帶裝 |
| Coating color：1/4W Green, S1/2W
Pale-green,、≧1/2W Gray |
| 塗裝顏色：1/4W 綠色, S1/2W 淺綠色,、≧1/2W
灰色 | |

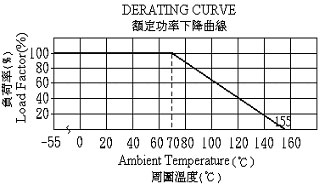

| RATING、DIMENSIONS 額 定、尺
寸 |
|
Model
型名 |
Power
Rating
額定功率
(W) |
Resistance
Range E-24
阻值範圍
Ω |
Maximum
Working
Voltage
最高使用電壓 |
Max Overload
最備過負荷電壓 |
Dielectric
Withstanding
Voltage
耐電壓 |
Dimension 尺寸 (mm) |
|
L |
D φ |
ι |
d φ |
|
1/4W、1/2W(S) |
1/4, 1/2 |
10K ~ <100M |
1600V |
1600V |
500V |
6±0.3 |
2.4±0.1 |
28±2 |
0.6±0.05 |
| 1/2W, 1W(S) |
1/4,1/2 |
10K ~ <100M |
2000V |
2000V |
700V |
9±0.5 |
3.3±0.5 |
30±3 |
0.6±0.05 |
| 1W, 2W(S) |
1/2,1 |
10K ~ <100M |
3500V |
3500V |
700V |
12  |
4.5±0.5 |
38±3 |
0.8±0.05 |
| 2W, 3W(S) |
1,2 |
10K ~ <100M |
3500V |
3500V |
700V |
16 |
5.5±0.5 |
38±3 |
0.8±0.05 |
| UL1676 Conductive-path (File
No.E220321) |
...............................................................................................................................................................................................................................................
|
